ABSAAR EMS Quickly Installation

ABSAAR APP is an app based on mobile phone operation, which is convenient for customers to view photovoltaic inverters at any time. it is for ABSAAR balcony systerm microinverter AB800A real time remote energy management system. Now ,Let's show you how to operation the ABSAAR EMS APP.

Step 1：Seach and download “ABSAAR EMS” APP

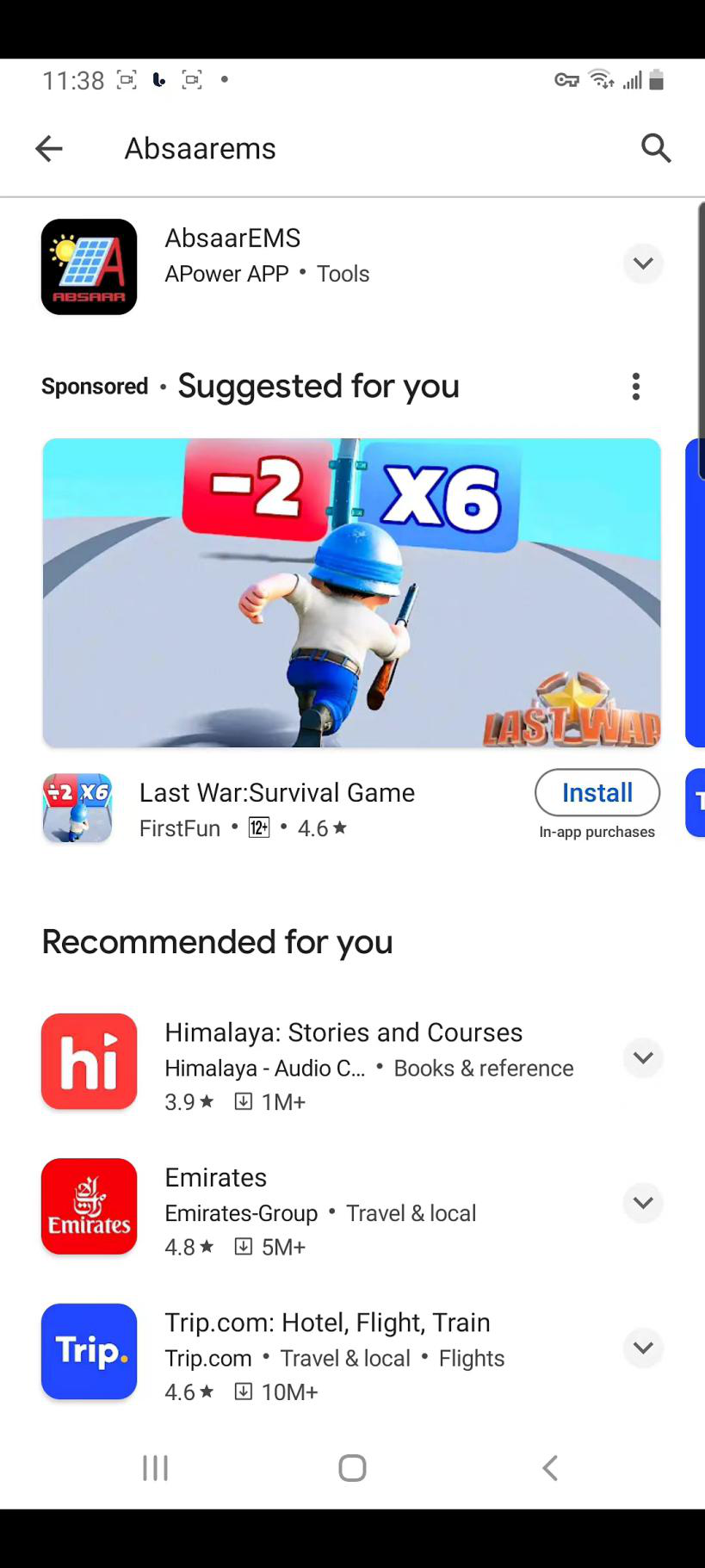

1.1. Android system: Open the APPlication software, search for "AbsaarEMS", download and install the app.

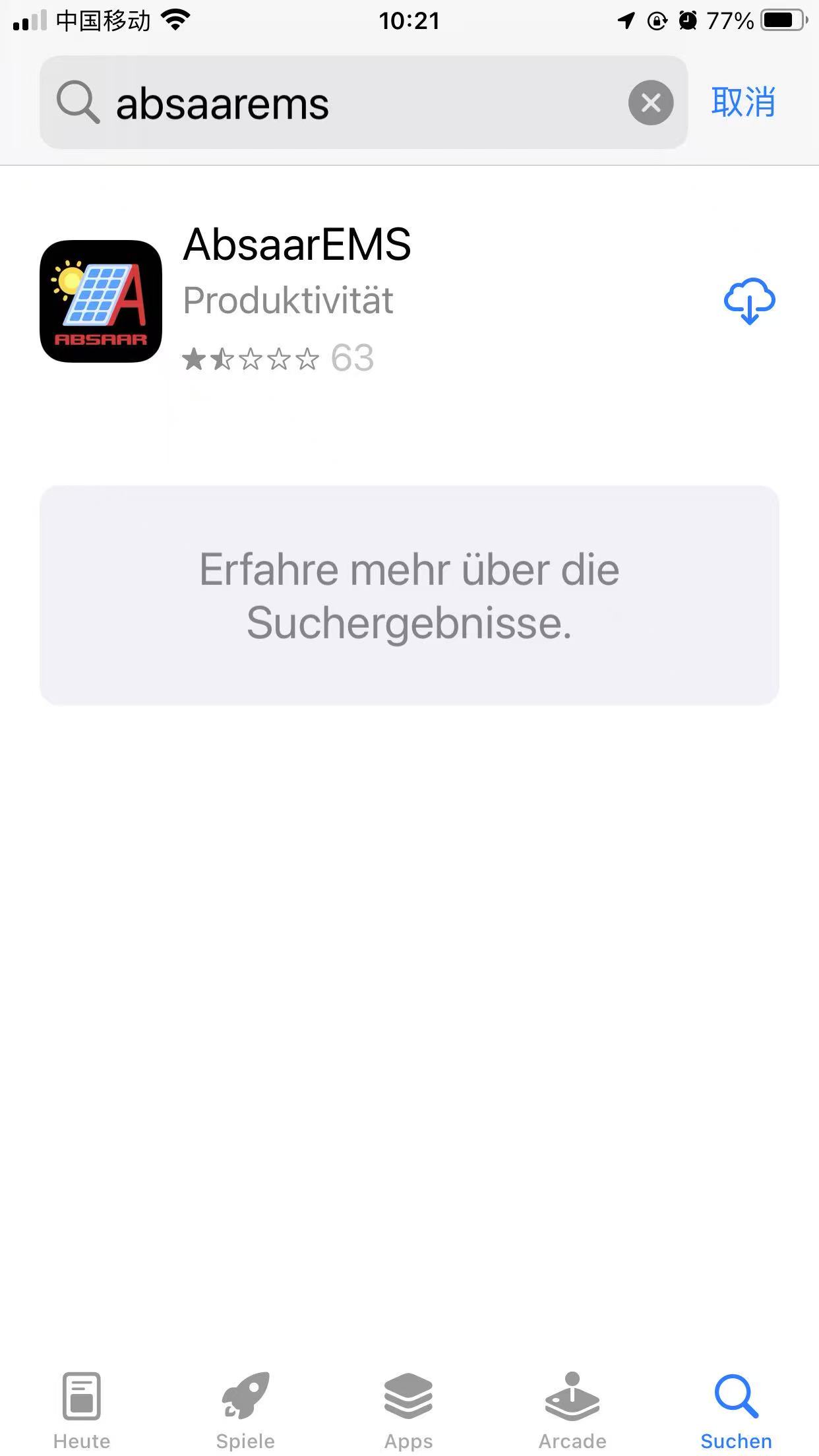

1.2. Apple system: open the APP Store and search for "AbsaarEMS" to download and install the app.

Step II: Registered account

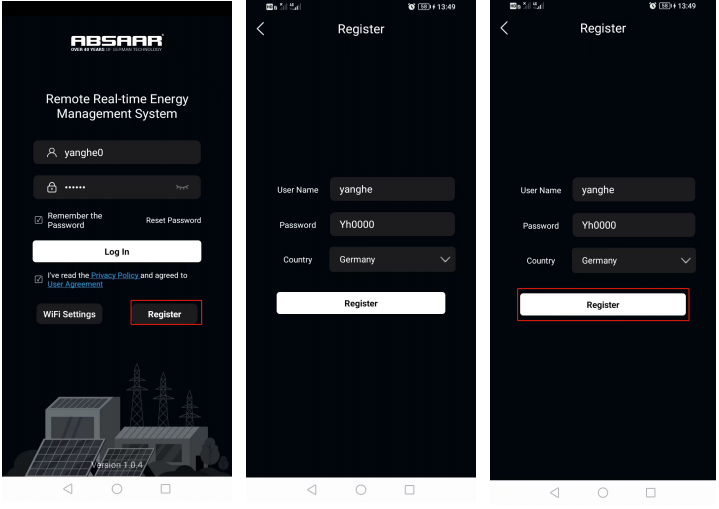

2.1. Open AbsaarEMS  APP, click Register, set your account and password, and register.

2.2. After successful registration, the page will automatically jump to the login page.

Step III : Add Site

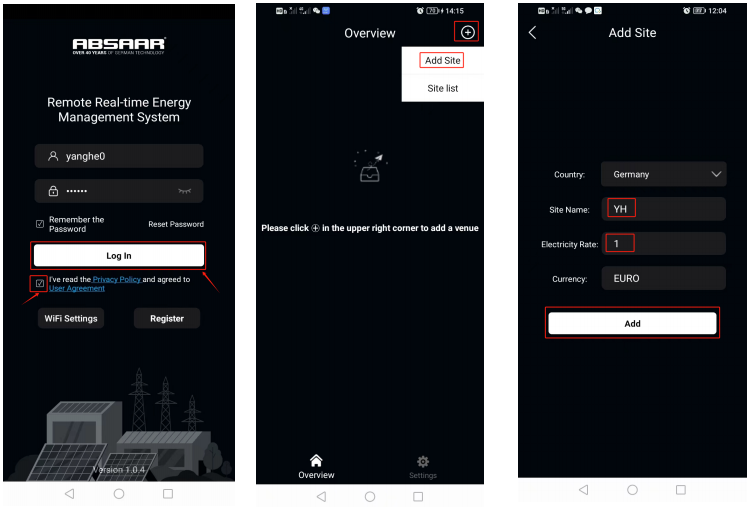

3.1. Login AbsaarEMS APP

3.2. Click "+"in the upper right corner to add site.

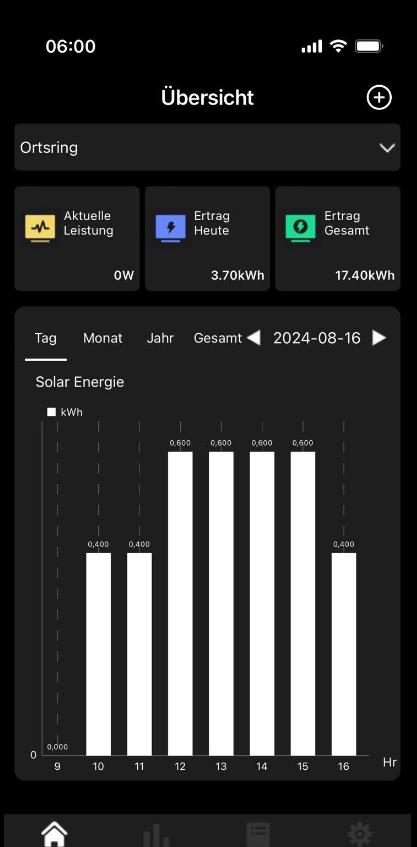

3.3. Fill in the corresponding information according to the prompt, and click Add. After adding successfully, the page will automatically jump to the overview page.

Step IV： Add Device （Microinverter）

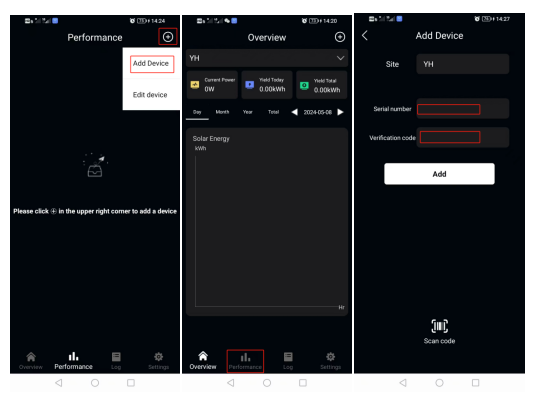

4.1. On the overview page, click Performance to enter the Performance page, and click "+"in the upper right corner to add Add Device （Microinverter）

4.2. Fill in serial code and verification code on the Device（Microinverter）

4.3. Or scan the QR code on the device (micro-inverter) to add directly

Step V:  Wifi settings

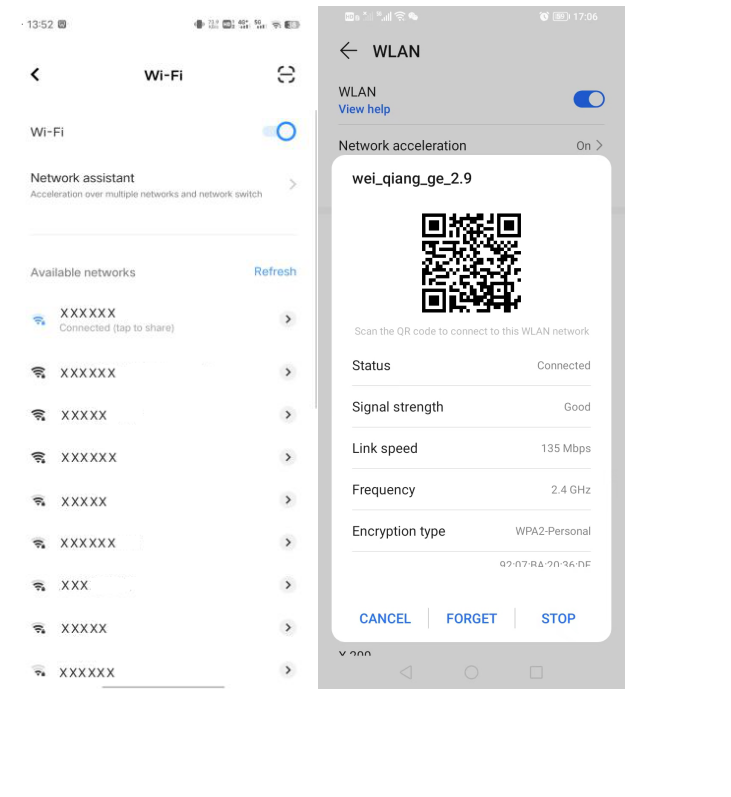

5.1. Turn on WiFi, select 2.4G WiFi and connect your mobile phone.

Step VI:  Device ( Microinverter ) distribution network setup

6.1. Connect the Device ( Microinverter )  to the PV  panel. At this time, the indicator light of the Device ( Microinverter ) flashes red and green light, indicating that the system is working.

6.2. Open AbsaarEMS APP and in the login page, select WiFi settings.

6.3.In the WiFi setting page, enter the WiFi password, and don't click Start.

6.4. When the indicator light of the Device ( Microinverter ) break, click Start to connect with WiFi.

6.5.After the WiFi connection is successful, return to the login page.

6.6. Connect AC plug, log in to the APP again after the equipment runs for 2-5 minutes, and then you can monitor the equipment running data.
